Seco

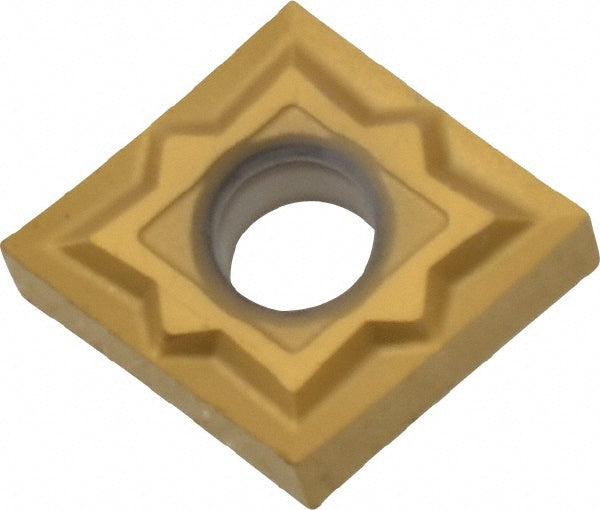

CNGG120401-MF1 Carbide Insert, Grade CP200, TiAlN - Seco 00072175
MFR# 00072175ISO/ANSI# CNGP430-MF1Series CNGP-MF1
$28.14List $36.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeCP200
MaterialCarbide
CoatingTiAlN
Description
The Seco 00072175 is a CNGG120401-MF1 carbide indexable insert, grade CP200, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerMF1
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberCNGP430-MF1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond 80
Insert size code430
Insert styleCNGP
Insert thickness in3/16
Iso codeCNGG120401-MF1
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number00072175
Manufacturer gradeCP200
Material gradeM01; M10; M20; S10; S20
Maximum depth of cut0.5039
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
