Seco

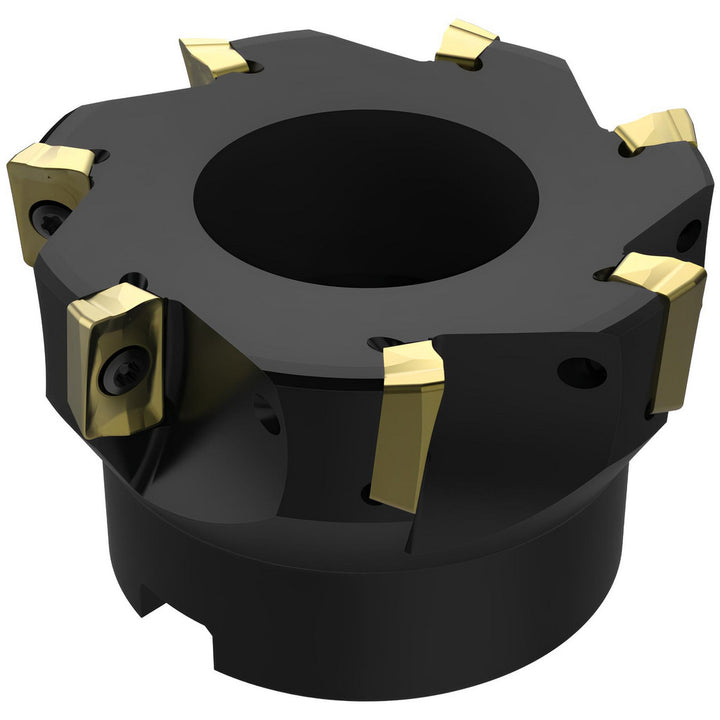

Indexable Milling Cutters - Seco 00072187
MFR# 00072187Series R220.69
$1,282.88List $1,339.20
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes7
Description
The Seco 00072187 indexable milling cutters. Series R220.69.
Specifications
Arbor hole diameter in1
Compatible insert size codeAP 1604
Coolant throughNo
Cutter styleR220.69
Cutting directionRight Hand
Hub diameter (mm)62.00
Insert holding methodClamp; Screw
Keyway width0.3800
Lead angle0/90
Maximum cutting diameter in3
Maximum depth of cut0.5900
Maximum ramping angle0.60
Number of cutter inserts7
Number of flutes7
Overall height1.9700
Pitch typeMedium
RakePositive (Axial); Negative (Radial)
StandardsISO
Tool applicationHelical Interpolation; Ramping; Slotting
