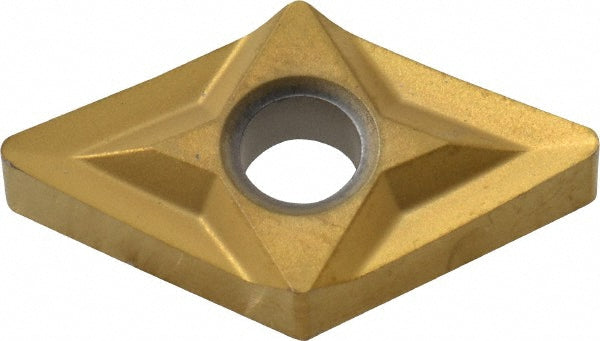

DNGM150408-MF1 Carbide Insert, Grade CP200, TiAlN - Seco 00072238

Seco

DNGM150408-MF1 Carbide Insert, Grade CP200, TiAlN - Seco 00072238

MFR# 00072238ISO/ANSI# DNGM432-MF1Series DNGM-MF1

$38.32List $49.14 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeCP200
MaterialCarbide
CoatingTiAlN

Description

The Seco 00072238 is a DNGM150408-MF1 carbide indexable insert, grade CP200, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerMF1
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2028
Included angle55degree
Industry standard numberDNGM432-MF1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNGM
Insert thickness in3/16
Iso codeDNGM150408-MF1
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number00072238
Manufacturer gradeCP200
Material gradeM01; M10; M20; S10; S20
Maximum depth of cut0.5787
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
