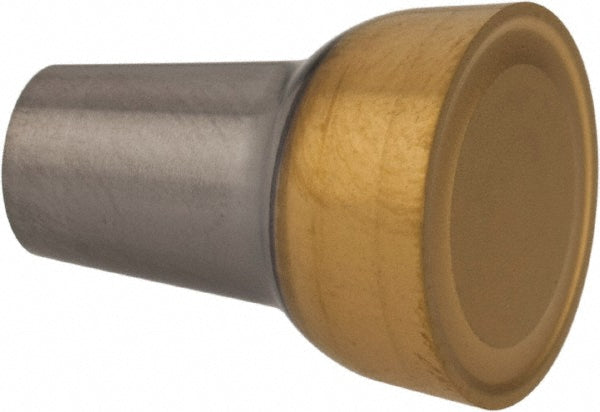

RCGS12.7-46 Carbide Insert, Grade CP200, TiAlN - Seco 00072260

Seco

RCGS12.7-46 Carbide Insert, Grade CP200, TiAlN - Seco 00072260

MFR# 00072260ISO/ANSI# RCGS12.7-46Series T-Lock

$51.55List $66.12 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
GradeCP200
MaterialCarbide
CoatingTiAlN

Description

The Seco 00072260 is a RCGS12.7-46 carbide indexable insert, grade CP200, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium, hard material.

Specifications

ApplicationsProfiling; Turning
Chipbreaker46
Coating finishTiAlN
Coating processPVD
Corner radius0.2500
Hole diameter0.0000
Included angle360
Inscribed circle in1/2
Insert handNeutral
Insert height0.6563
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert size code4
Insert styleRCGS
Iso codeRCGS12.7-46
Manufacturer gradeCP200
Material gradeP10; P20; M01; M10; M20; S10; S20
Maximum depth of cut0.2500
Msc manufacturer numberRCGS4-46
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7
Secondary workpiece materialCast Iron; Steel
ShapeRound
Side length0.5000
StandardsRCGS4-46; RCGS12.7-46
Thickness in21/32
Width in1/2
