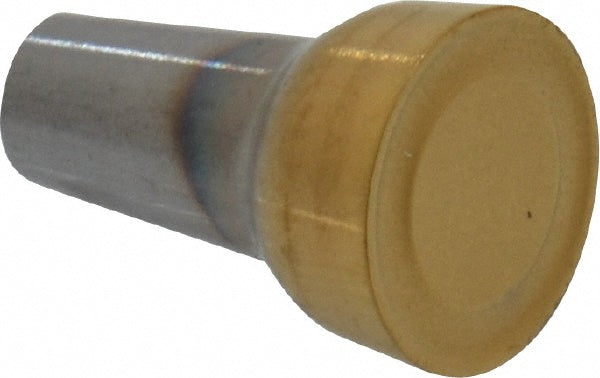

RCGS6.35-46 Carbide Insert, Grade CP200, TiAlN - Seco 00072266

Seco

RCGS6.35-46 Carbide Insert, Grade CP200, TiAlN - Seco 00072266

MFR# 00072266ISO/ANSI# RCGS6.35-46Series T-Lock

$30.92List $39.65 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
GradeCP200
MaterialCarbide
CoatingTiAlN

Description

The Seco 00072266 is a RCGS6.35-46 carbide indexable insert, grade CP200, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium, hard material.

Specifications

ApplicationsProfiling; Turning
Chipbreaker46
Coating finishTiAlN
Coating processPVD
Corner radius0.1250
Hole diameter0.0000
Included angle360
Inscribed circle in1/4
Insert handNeutral
Insert height0.3594
Insert holding methodClamp; Pin
Insert length in1/4
Insert materialCarbide
Insert size code2
Insert styleRCGS
Iso codeRCGS6.35-46
Manufacturer gradeCP200
Material gradeP10; P20; M01; M10; M20; S10; S20
Maximum depth of cut0.1250
Msc manufacturer numberRCGS2-46
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7
Secondary workpiece materialCast Iron; Steel
ShapeRound
Side length0.2500
StandardsRCGS2-46; RCGS6.35-46
Thickness in23/64
Width in1/4
