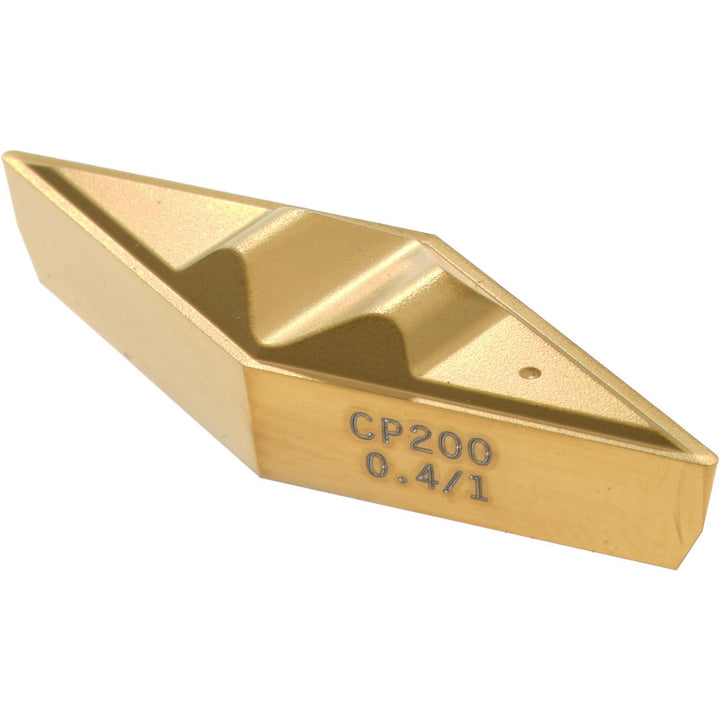

VCGR160404 Carbide Insert, Grade CP200, TiAlN - Seco 00072293

Seco

VCGR160404 Carbide Insert, Grade CP200, TiAlN - Seco 00072293

MFR# 00072293ISO/ANSI# VCGR160404Series VCGR-Flat Top

$47.51List $60.93 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeCP200
MaterialCarbide
CoatingTiAlN

Description

The Seco 00072293 is a VCGR160404 carbide indexable insert, grade CP200, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi insert codeVCGR331
Ansi size code331
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle35
Industry standard numberVCGR331
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length1.3070
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVCGR
Insert thickness in3/16
Iso codeVCGR160404
Iso insert codeVCGR160404
Iso size code160404
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number00072293
Manufacturer gradeCP200
Material gradeM01; M10; M20; S10; S20
Maximum depth of cut0.6378
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
