Seco

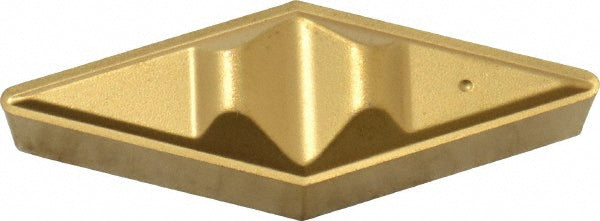

VCGR160408 Carbide Insert, Grade CP200, TiAlN - Seco 00072296
MFR# 00072296ISO/ANSI# VCGR332Series VCGR-Flat Top
$47.51List $60.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeCP200
MaterialCarbide
CoatingTiAlN
Description
The Seco 00072296 is a VCGR160408 carbide indexable insert, grade CP200, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerFlat Top
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Included angle35degree
Industry standard numberVCGR332
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length1.3070
Insert materialCarbide
Insert shapeDiamond 35
Insert size code332
Insert styleVCGR
Insert thickness in3/16
Iso codeVCGR160408
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number00072296
Manufacturer gradeCP200
Material gradeM01; M10; M20; S10; S20
Maximum depth of cut0.6220
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
