Seco

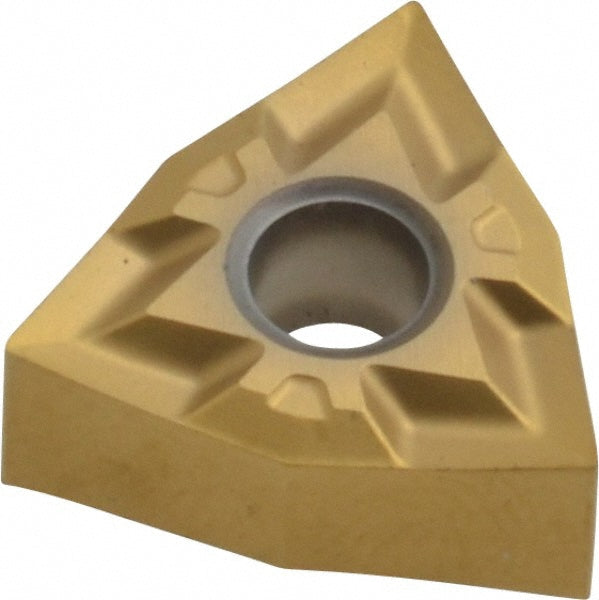

WNGG060402-MF1 Carbide Insert, Grade CP200, TiAlN - Seco 00072302
MFR# 00072302ISO/ANSI# WNGP330.5-MF1Series WNGP-MF1
$24.24List $31.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeCP200
MaterialCarbide
CoatingTiAlN
Description
The Seco 00072302 is a WNGG060402-MF1 carbide indexable insert, grade CP200, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerMF1
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNGP330.5-MF1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5196
Insert materialCarbide
Insert shapeTrigon
Insert size code330.5
Insert styleWNGP
Insert thickness in3/16
Iso codeWNGG060402-MF1
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number00072302
Manufacturer gradeCP200
Material gradeM01; M10; M20; S10; S20
Maximum depth of cut0.2520
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
