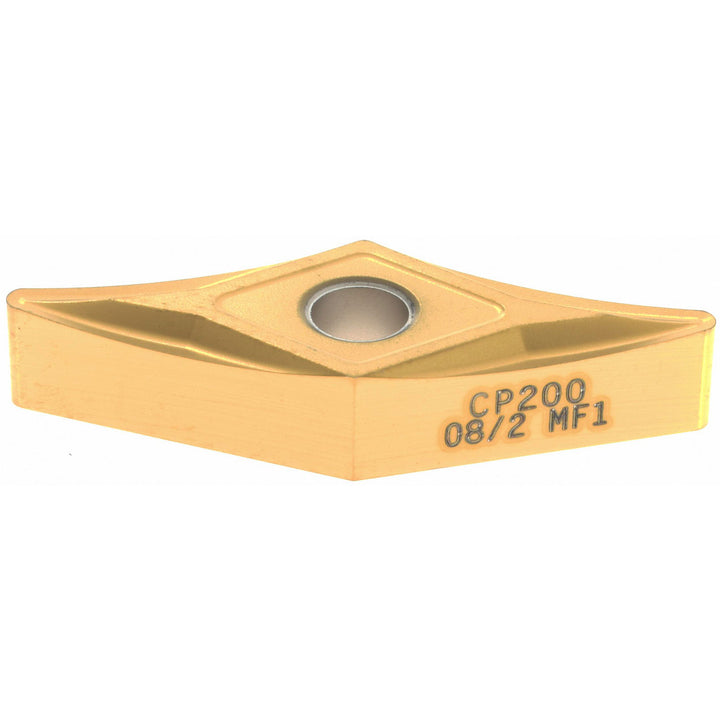

VNGM160408-MF1 Carbide Insert, Grade CP200, TiAlN - Seco 00072307

Seco

VNGM160408-MF1 Carbide Insert, Grade CP200, TiAlN - Seco 00072307

MFR# 00072307ISO/ANSI# VNGM160408Series VNGM-MF1

$52.38List $67.18 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeCP200
MaterialCarbide
CoatingTiAlN

Description

The Seco 00072307 is a VNGM160408-MF1 carbide indexable insert, grade CP200, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi insert codeVNGM332
Ansi size code332
Chip breakerMF1
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle35
Industry standard numberVNGM332-MF1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.3070
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVNGM
Insert thickness in3/16
Iso codeVNGM160408-MF1
Iso insert codeVNGM160408
Iso size code160408
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number00072307
Manufacturer gradeCP200
Material gradeM01; M10; M20; S10; S20
Maximum depth of cut0.5984
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
