Seco

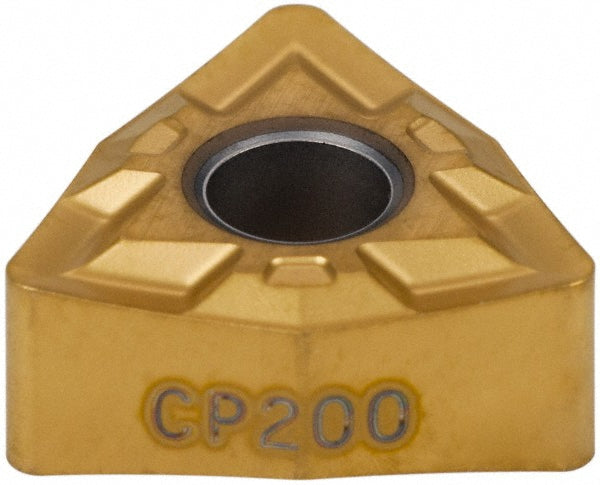

WNMG060408-MF1 Carbide Insert, Grade CP200, TiAlN - Seco 00072312
MFR# 00072312ISO/ANSI# WNMP332-MF1Series WNMP-MF1
$17.02List $21.82
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeCP200
MaterialCarbide
CoatingTiAlN
Description
The Seco 00072312 is a WNMG060408-MF1 carbide indexable insert, grade CP200, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerMF1
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNMP332-MF1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5118
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMP
Insert thickness in3/16
Iso codeWNMG060408-MF1
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number00072312
Manufacturer gradeCP200
Material gradeM01; M10; M20; S10; S20
Maximum depth of cut0.2441
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
