Seco

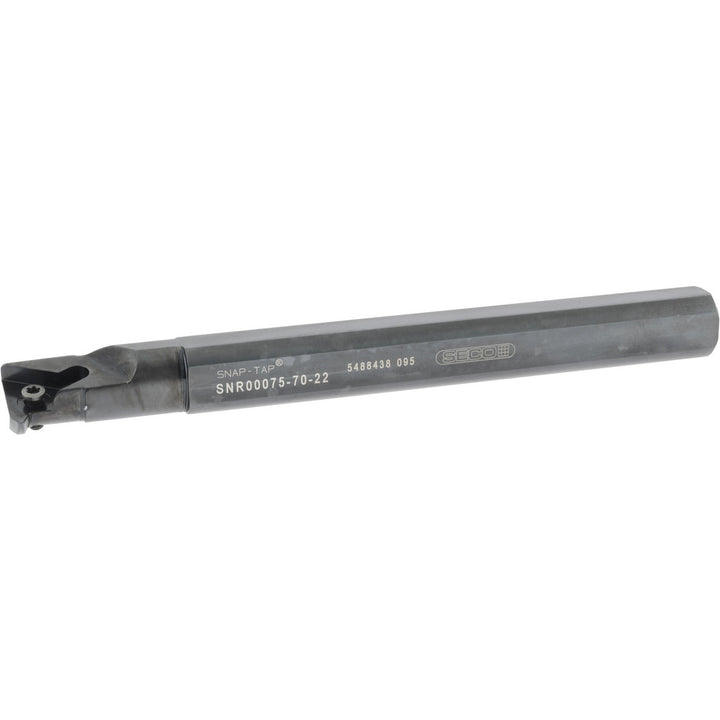

Indexable Threading Toolholders - Seco 00072314
MFR# 00072314Series Snap Tap
$237.10List $271.08
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00072314 indexable threading toolholders. Series Snap Tap.
Specifications
Back of bar to cutting edge0.4920
Center to cutting edge0.4920
Coolant entry style code0 - Without Coolant
Coolant throughNo
Cutting tool applicationThreading; Turning
D in0.7500
F in0.4920
Hand of holderRight Hand
Head length2.0000
Insert compatibility22NR
Insert holding methodScrew
Insert inscribed circle in1/2
Maximum depth of cut2.0000
Minimum bore diameter0.9000
Multi use toolYes
Overall length7.0000
Shank height0.6910
Shank length in5
Shank width diameter0.7500
Thread typeInternal
Toolholder materialSteel
Toolholder styleSN
