Seco

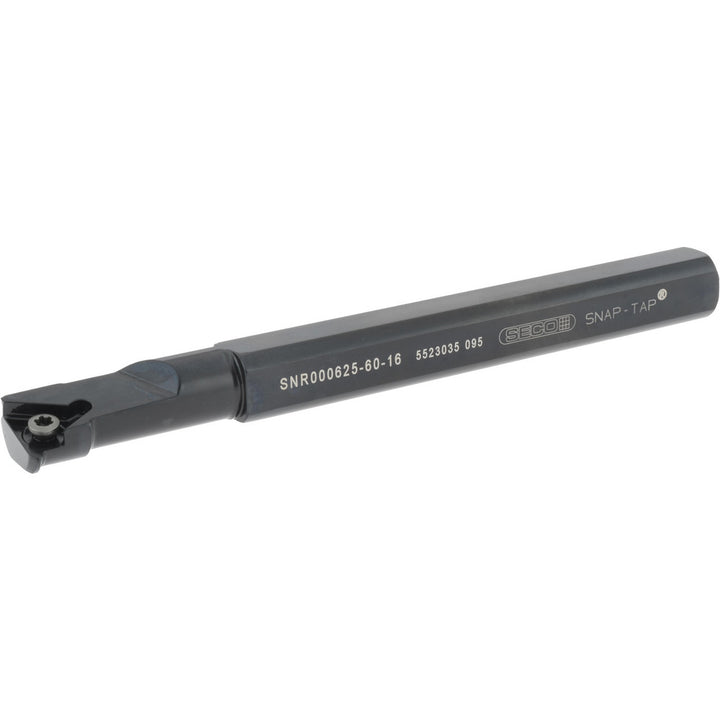

Indexable Threading Toolholders - Seco 00072374
MFR# 00072374Series Snap Tap
$237.10List $271.08
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00072374 indexable threading toolholders. Series Snap Tap.
Specifications
Back of bar to cutting edge0.4060
Center to cutting edge0.4060
Compatible insert size code2
Coolant entry style code0 - Without Coolant
Coolant throughNo
Cutting tool applicationThreading; Turning
D in0.6250
F in0.4060
Hand of holderRight Hand
Head length1.5000
Insert compatibility16NR
Insert holding methodScrew
Insert inscribed circle in3/8
Maximum depth of cut1.5000
Minimum bore diameter0.7500
Multi use toolYes
Overall length6.0000
Shank height0.5660
Shank length in4-1/2
Shank width diameter0.6250
Thread typeInternal
Toolholder materialSteel
Toolholder styleSN
