Seco

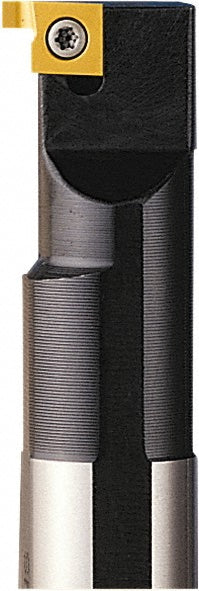

Indexable Grooving - Seco 00072586
MFR# 00072586Series Snap Tap
$237.40List $271.08
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00072586 indexable grooving. Suited for steel. Series Snap Tap.
Specifications
Center to cutting edge0.3190
Compatible insert size code9
Complete insert compatibility9NR .030FG; 9NR .046FG; 9NR .056FG; 9NR .068FG; 9NR .086FG; 9NR .103FG
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head length1.2500
Insert compatibility9NR
Insert holding methodScrew
Internal or externalInternal
Maximum depth of cut0.1030
Maximum groove width0.1030
Minimum groove width0.0300
Minimum hole diameter0.5000
Multi use toolNo
Overall length5.5000
Primary workpiece materialSteel
Shank height0.4410
Shank length in4-1/4
Shank width diameter0.6250
Toolholder styleSN
Toolholder typeNon-Face Grooving
