Seco

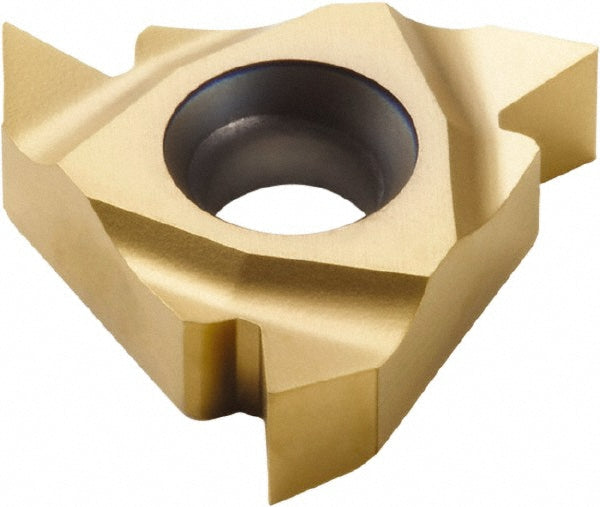

1/2" IC Carbide Insert, Grade CP500, TiAlN - Seco 00072723
MFR# 00072723Series Snap-Tap
$57.11List $73.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00072723 is a carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.2500
Included angle60
Inscribed circle in1/2
Insert handLeft Hand
Insert materialCarbide
Insert size code22
Insert style22NL
Manufacturer gradeCP500
Pitch (mm)3.50-5.00
Primary workpiece materialUniversal
StandardsISO
Thickness0.1854
Threads per inch7-5
Thread standardPartial Profile 60 Degree
Thread typeInternal
