Seco

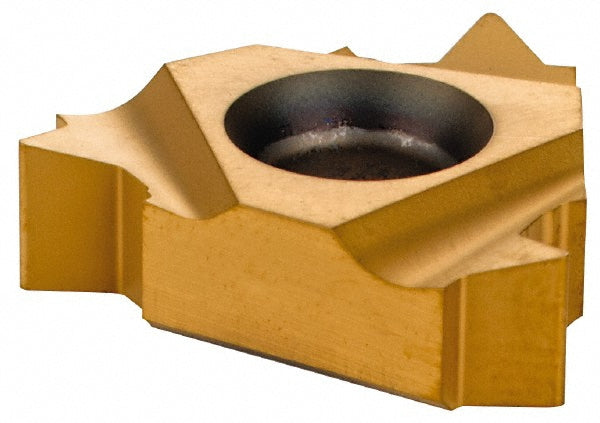

1/2" IC Solid Carbide Insert, Grade CP500, Coated - Seco 00073076
MFR# 00073076Series Snap Tap
$57.11List $73.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeCP500
MaterialSolid Carbide
CoatingCoated
Description
The Seco 00073076 is a solid carbide indexable insert, grade CP500, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0120
Included angle60
Inscribed circle in1/2
Insert handRight Hand
Insert materialSolid Carbide
Insert size code22
Insert style22NR
Manufacturer gradeCP500
Material gradeMicrograin
Primary workpiece materialUniversal
StandardsISO
Thickness0.1854
Threads per inch6
Thread standardUN
Thread typeInternal
