Seco

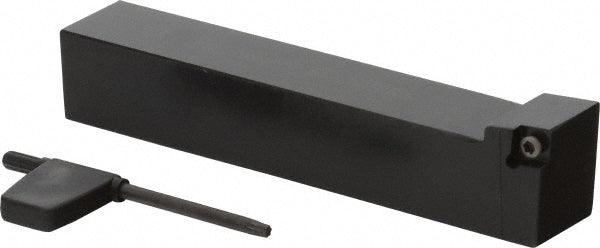

Indexable Turning & Profiling - Seco 00073924
MFR# 00073924Series Multi-Directional Turning (MDT)
$169.08List $193.32
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00073924 indexable turning & profiling. Suited for universal. Series Multi-Directional Turning (MDT).
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeCC325
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length0.6700
Insert compatibilityCCMT 32.52
Insert holding methodScrew
Insert inscribed circle in3/8
Multi use toolNo
Overall length6.0000
Primary workpiece materialUniversal
RakeNeutral
Rake angle0
Shank height1.0000
Shank width1.0000
Toolholder styleSCLC
