Seco

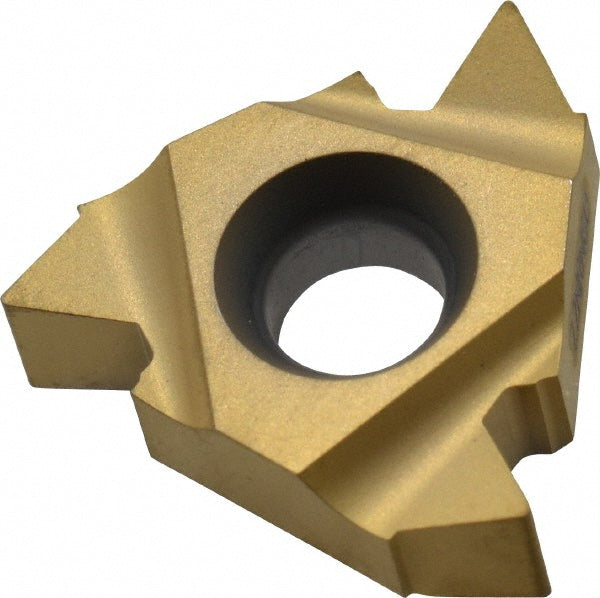

1/2" IC Solid Carbide Insert, Grade CP300, Coated - Seco 00075882
MFR# 00075882Series Snap Tap
$57.11List $73.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeCP300
MaterialSolid Carbide
CoatingCoated
Description
The Seco 00075882 is a solid carbide indexable insert, grade CP300, Coated coated. Suited for steel.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0100
Cutting edge to theoretical edge length0.0710
Face of insert to tip centerline0.0980
Included angle60
Inscribed circle in1/2
Insert handRight Hand
Insert materialSolid Carbide
Insert style22NR
Manufacturer gradeCP300
Material gradeC6
Msc manufacturer number22NR N60
Pitch (mm)3.50 to 5.00
Primary workpiece materialSteel
StandardsISO
Thickness0.1854
Threads per inch7-5
Thread typeInternal
