Seco

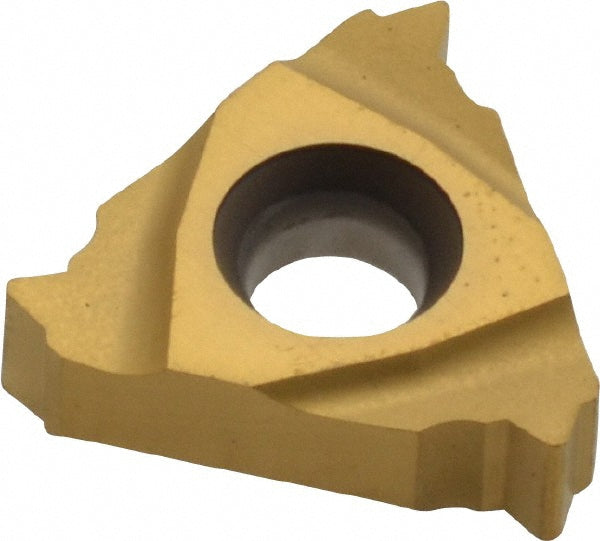

3/8" IC Solid Carbide Insert, Grade CP200, TiAlN - Seco 00076239
MFR# 00076239Series Snap Tap
$35.70List $45.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeCP200
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00076239 is a solid carbide indexable insert, grade CP200, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0110
Cutting edge to theoretical edge length0.0470
Face of insert to tip centerline0.0590
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert style16ER
Manufacturer gradeCP200
Pitch (mm)2.00
Primary workpiece materialUniversal
StandardsISO
Thickness0.1366
Thread standardISO
Thread typeExternal
