Seco

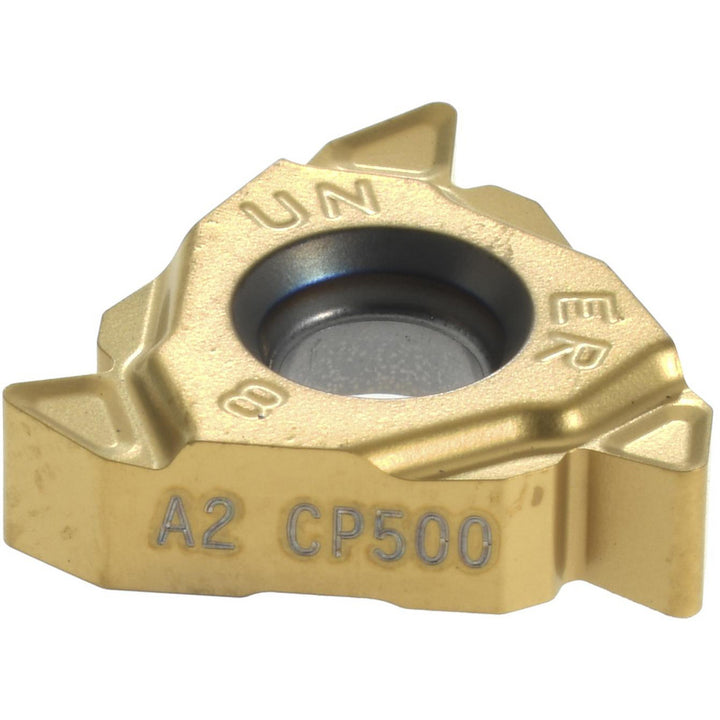

3/8" IC Carbide Insert, Grade CP500, TiAlN - Seco 00077791
MFR# 00077791Series Snap-Tap
$32.16List $41.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00077791 is a carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
ChipbreakerA2
Coating finishTiAlN
Coating processPVD
Corner radius0.0170
Cutting edge to theoretical edge length0.0470
Face of insert to tip centerline0.0590
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert style16ER
Manufacturer gradeCP500
Primary workpiece materialStainless Steel
StandardsISO
Thickness0.1366
Threads per inch8
Thread standardUN
Thread typeExternal
