Seco
3/8" IC Carbide Insert, Grade CP500, TiAlN - Seco 00077916
MFR# 00077916Series Snap Tap
$52.64List $67.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeCP500
MaterialCarbide
CoatingTiAlN
Description

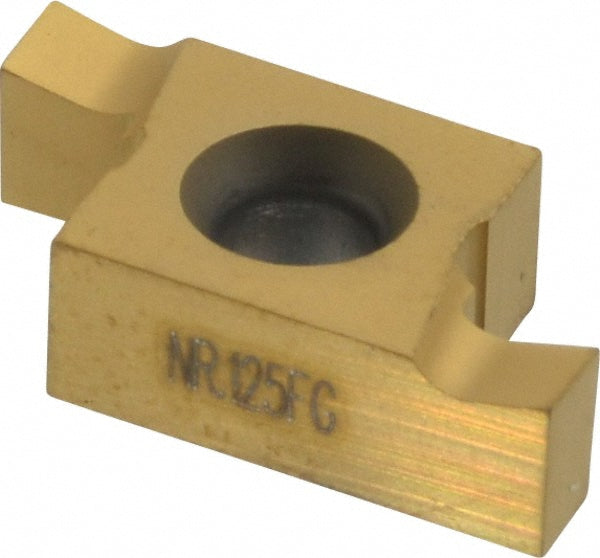

The Seco 00077916 is a carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Chip breakerFG
Coating finishTiAlN
Coating processPVD
Cutting width0.1250in
Full radiusNo
Inscribed circle in3/8
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert seat size14
Insert size125
Insert size code14125
Insert style14NR
Manufacturer gradeCP500
Material gradeMicrograin
Maximum depth of cut0.1250
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.5512in
Primary workpiece materialUniversal
StandardsISO
