Seco

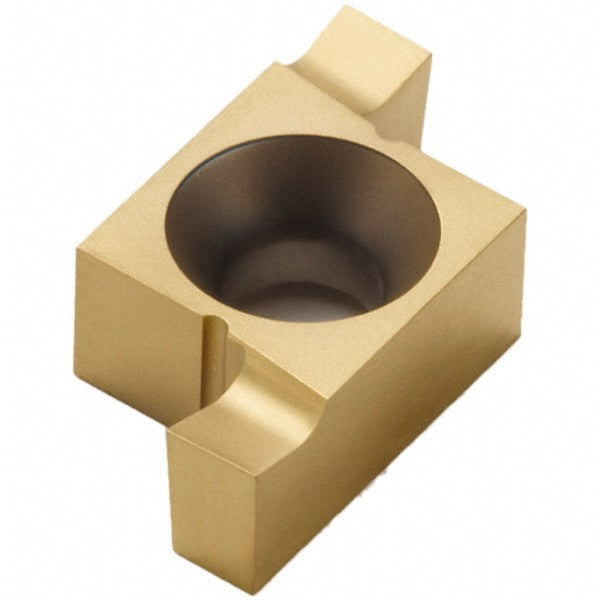

1/2" IC Solid Carbide Insert, Grade CP500, TiAlN - Seco 00077929
MFR# 00077929Series Snap Tap
$78.16List $100.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeCP500
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00077929 is a solid carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Chip breakerFG
Coating finishTiAlN
Coating processPVD
Cutting width0.1740
Full radiusNo
Inscribed circle in1/2
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size20
Insert size174
Insert size code20174
Insert style20ER
Manufacturer gradeCP500
Material gradeMicrograin
Maximum depth of cut0.1740
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Overall length0.7874
Primary workpiece materialUniversal
StandardsISO
Style20ER/NR .174FG
