Seco

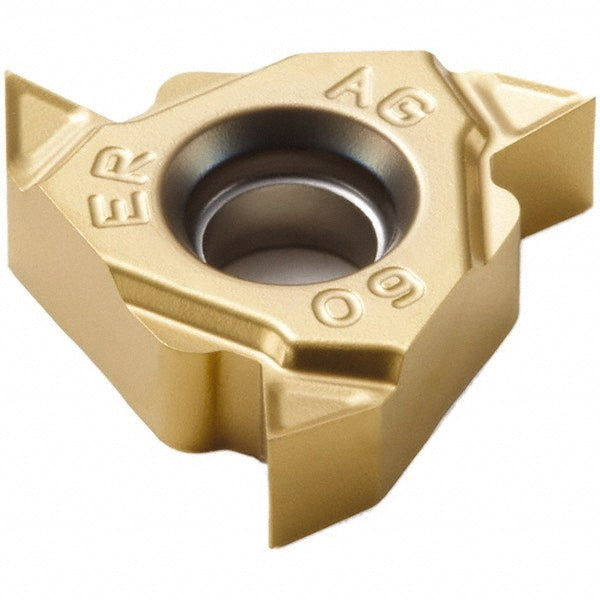

3/8" IC Solid Carbide Insert, Grade CP500, Coated - Seco 00077945
MFR# 00077945Series Snap Tap
$28.54List $36.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeCP500
MaterialSolid Carbide
CoatingCoated
Description
The Seco 00077945 is a solid carbide indexable insert, grade CP500, Coated coated. Suited for universal.
Specifications
ChipbreakerA2
Coating finishCoated
Coating processPVD
Corner radius0.0070
Cutting edge to theoretical edge length0.0430
Face of insert to tip centerline0.0590
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert style16ER
Manufacturer gradeCP500
Material gradeMicrograin
Msc manufacturer number16ER G60
Pitch (mm)1.75 to 3.00
Primary workpiece materialUniversal
StandardsISO
Thickness0.1366
Threads per inch14-8
Thread typeExternal
