Seco

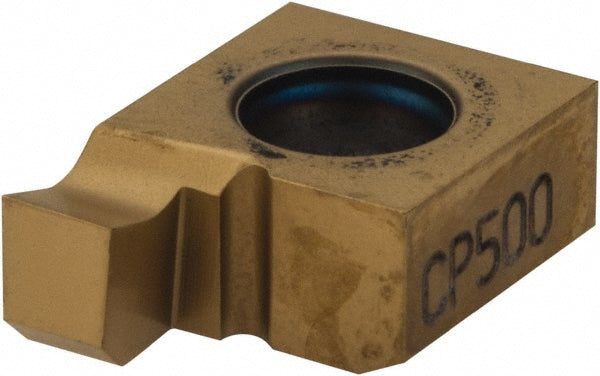

1/4" IC Solid Carbide Insert, Grade CP500, TiAlN - Seco 00077958
MFR# 00077958Series Snap Tap
$27.10List $34.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeCP500
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00077958 is a solid carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Chip breakerFG
Coating finishTiAlN
Coating processPVD
Cutting width0.0860
Full radiusNo
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size9
Insert size086
Insert size code9086
Insert style9NR
Manufacturer gradeCP500
Material gradeMicrograin
Maximum depth of cut0.0860
Maximum depth of cut range0.0750 to 0.1000
Multi use toolNo
Overall length0.3543
Primary workpiece materialUniversal
StandardsISO
