Seco

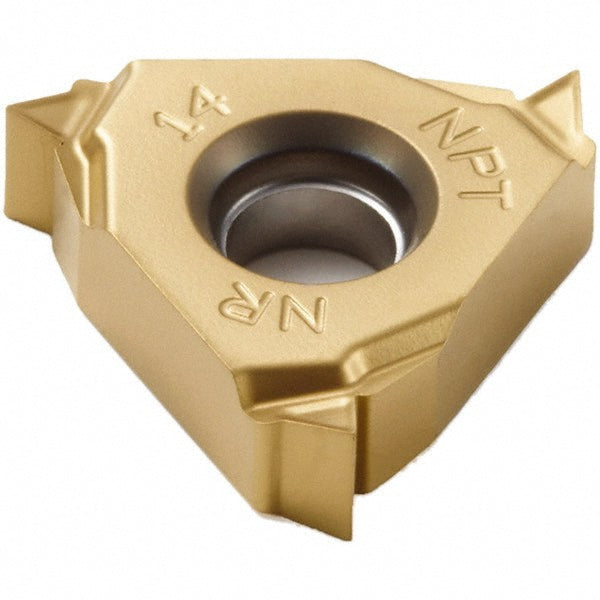

3/8" IC Solid Carbide Insert, Grade CP500, Coated - Seco 00077975
MFR# 00077975Series Snap Tap
$32.16List $41.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeCP500
MaterialSolid Carbide
CoatingCoated
Description
The Seco 00077975 is a solid carbide indexable insert, grade CP500, Coated coated. Suited for stainless steel.
Specifications
ChipbreakerA2
Coating finishCoated
Coating processPVD
Corner radius0.0030
Cutting edge to theoretical edge length0.0430
Face of insert to tip centerline0.0590
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert style16NR
Manufacturer gradeCP500
Material gradeMicrograin
Primary workpiece materialStainless Steel
StandardsISO
Thickness0.1366
Threads per inch14
Thread standardNPT
Thread typeInternal
