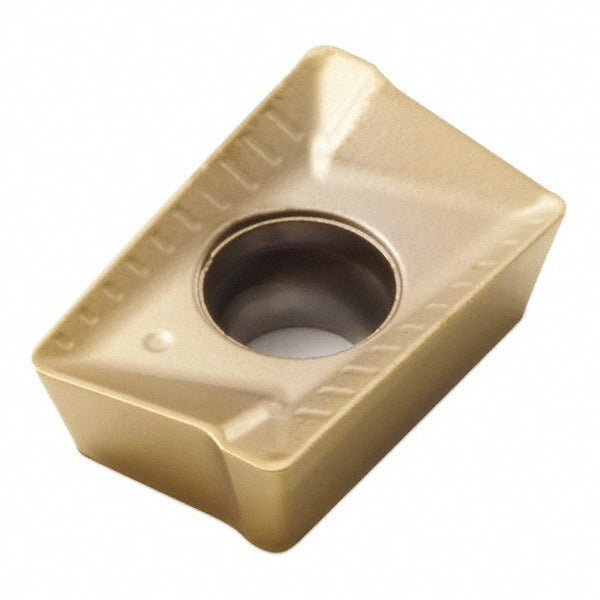

APMT100305TR-ME08 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00078104

Seco

APMT100305TR-ME08 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00078104

MFR# 00078104ISO/ANSI# APMT100305TR-ME08Cat# APMT100305TR-ME08Series APMT-10

$23.75List $30.46 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeF40M
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 00078104 is a APMT100305TR-ME08 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.

Specifications

Ansi codeAPMT100305TR-ME08
Chip breakerME08
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityR217.69-16; R220.69-16
Cutting edge effective length0.4331
Cutting edge styleT-Land
Hole diameter0.1134
Included angle degree88
Inscribed circle0.2638
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code100305
Insert styleAPMT
Iso codeAPMT100305TR-ME08
Length0.4331
Length range0.4000 to 0.4500
Manufacturers catalog numberAPMT100305TR-ME08
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3996
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle25
Relief angle11
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1378
Thickness range0.1250 to 0.1500
Width0.2638
