Seco

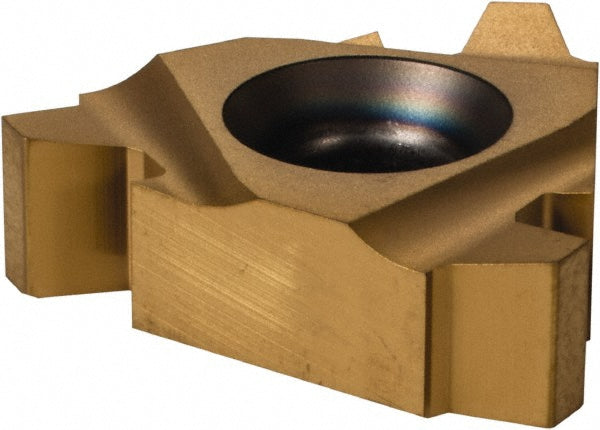

5/8" IC Solid Carbide Insert, Grade CP500, Coated - Seco 00078178
MFR# 00078178Series Snap Tap
$104.41List $133.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
GradeCP500
MaterialSolid Carbide
CoatingCoated
Description
The Seco 00078178 is a solid carbide indexable insert, grade CP500, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Included angle29
Inscribed circle in5/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code27
Insert style27NR
Manufacturer gradeCP500
Material gradeMicrograin
Primary workpiece materialUniversal
StandardsISO
Thickness0.2421
Threads per inch4
Thread standardAcme
Thread typeInternal
