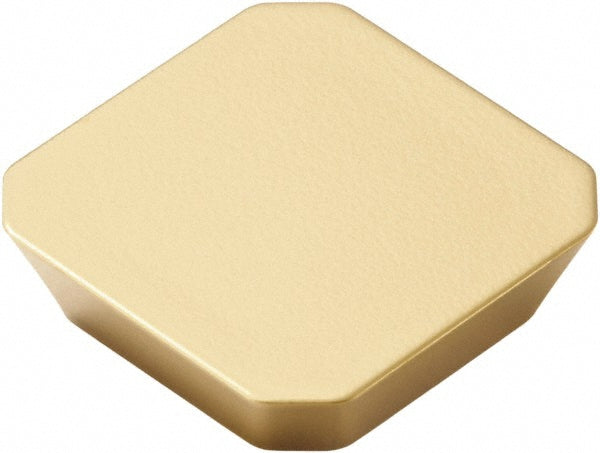

SEKN1504AFTN-M18 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00082297
MFR# 00082297ISO/ANSI# SEKN1504AFTN-M18Cat# SEKN1504AFTN-M18Series SEKN-15
$33.35List $42.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00082297 is a SEKN1504AFTN-M18 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSEKN1504AFTN-M18
Chip breakerM18
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilitySE15AR
Cutting edge effective length0.6248
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size15
Insert size code1504
Insert styleSEKN
Iso codeSEKN1504AFTN-M18
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberSEKN1504AFTN-M18
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.4567
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNeutral
Rake angle0
Relief angle20.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in5/8
