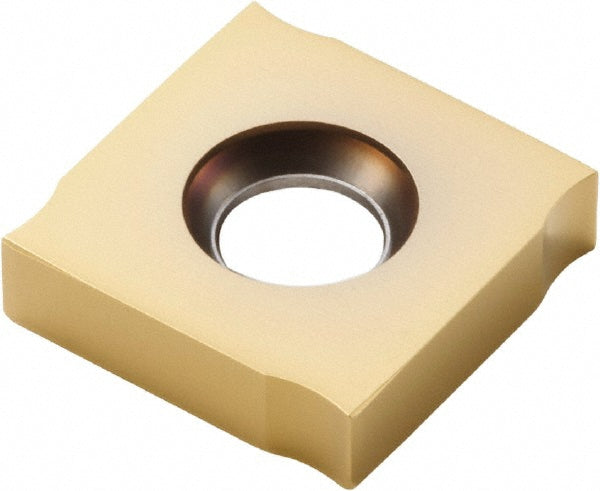

335.19-1103-M08 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00083407

Seco

335.19-1103-M08 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00083407

MFR# 00083407ISO/ANSI# 335.19-1103-M08Cat# 335.19-1103-M08Series 335.19-11

$36.63List $46.98 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 00083407 is a 335.19-1103-M08 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.

Specifications

Ansi code335.19-1103-M08
Chip breakerM08
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutter series compatibility335.19
Cutting edge effective length0.1063
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.4331
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size11
Insert size code1103
Insert style335.19
Iso code335.19-1103-M08
Length0.4331
Length range0.4000 to 0.4500
Manufacturers catalog number335.19-1103-M08
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNegative
Rake angle15
Relief angle0.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness0.1063
Thickness range0.1000 to 0.1250
Width0.4331
