Seco

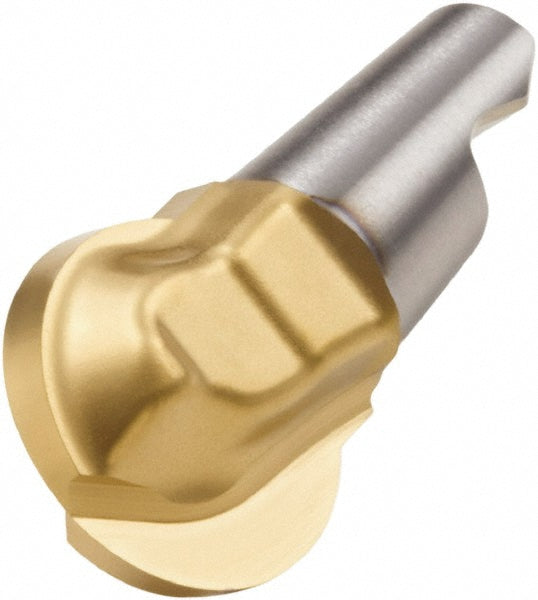

Carbide Insert, Grade F30M, TiAlN - Seco 00083494
MFR# 00083494Series MM06
$95.58
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeF30M
CoatingTiAlN
Description
The Seco 00083494 is a carbide indexable insert, grade F30M, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material.
Specifications
Chamfer angle0degree
ChipbreakerM03
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.1570
Cutting diameter0.3150
Cutting width0.3150in
Extension from holder in0.3440
Functional length0.3440
Included angle degree90
Insert handRight Hand
Insert size0.315-B120P
Lead angle90
Length of cut0.1570in
Manufacturers catalog number00083494
Manufacturer gradeF30M
Material gradeP20; P30; M10; M20; H10
Maximum depth of cut0.1570
Milling tip full descriptionMM06-0.315-B120P-M03
Milling tip styleMM06
Milling tip typeProfile
Number of flutes2
Overall length in11/32in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
StandardsANSI
Tool materialCarbide
