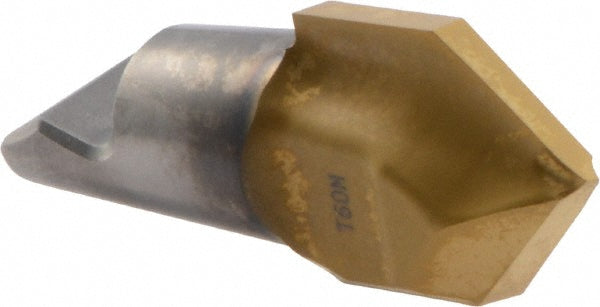

Carbide Insert, Grade T60M, TiAlN - Seco 00084297

Seco

Carbide Insert, Grade T60M, TiAlN - Seco 00084297

MFR# 00084297Series MM16

$233.22
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeT60M
CoatingTiAlN

Description

The Seco 00084297 is a carbide indexable insert, grade T60M, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45degree
ChipbreakerM06
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.4210
Cutting width0.7500in
Extension from holder in0.8720
Functional length0.8720
Included angle degree90
Insert handRight Hand
Insert size0.750-C90
Lead angle45
Length of cut0.3780in
Manufacturers catalog number00084297
Manufacturer gradeT60M
Maximum depth of cut0.3780
Milling tip full descriptionMM16-0.750-C90-M06
Milling tip styleMM16
Milling tip typeChamfer
Number of flutes2
Overall length0.8720in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
