Seco

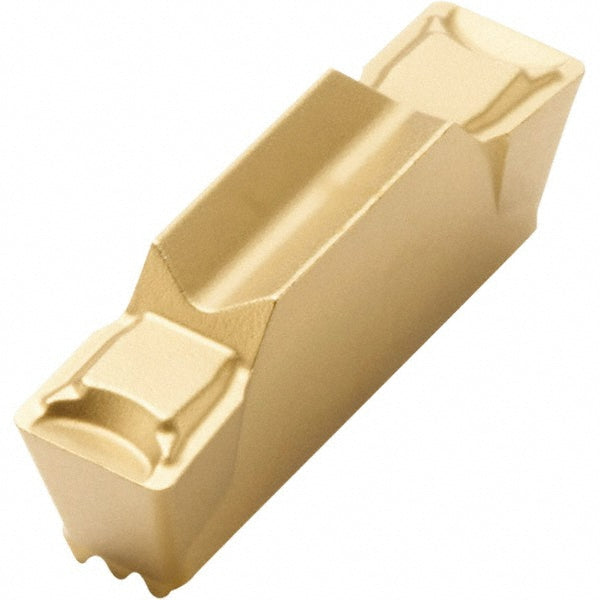

Carbide Insert, Grade CP500, TiAlN - Seco 00086117
MFR# 00086117Series LCMF
$44.38List $56.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00086117 is a carbide indexable insert, grade CP500, TiAlN coated. Suited for universal.
Specifications
Chip breakerMG
Coating finishTiAlN
Coating processPVD
Corner radius0.0160
Cutting height0.1770
Cutting width0.1969
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size160504
Insert size code1605040500
Insert styleLCMF
Manufacturer gradeCP500
Material gradeMicrograin
Measurement typeMetric
Multi use toolNo
Overall length0.63
Primary workpiece materialUniversal
RakePositive
Rake angle7
StandardsISO
