Seco

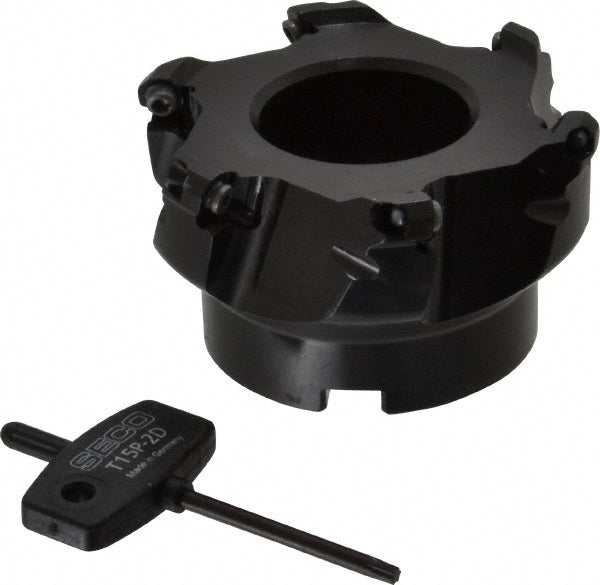

Indexable Milling Cutters - Seco 00086840
MFR# 00086840Series R220.43
$1,118.25List $1,188.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Seco 00086840 indexable milling cutters. Series R220.43.
Specifications
Arbor hole diameter in1
Compatible insert size codeOF 05T305
Coolant throughNo
Cutter styleR220.43
Cutting directionRight Hand
Hub diameter2.4410
Insert holding methodScrew
Keyway width0.3800
Maximum body diameter3.5000
Maximum cutting diameter3.6200
Maximum depth of cut0.1380
Maximum rpm9400
Minimum cutting diameter3.1500
Number of cutter inserts6
Number of flutes6
Overall height in2
Pitch typeNormal
RakePositive
Tool applicationFacing
