Seco

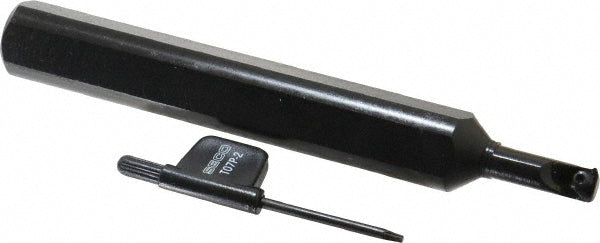

Indexable Threading Toolholders - Seco 00086856
MFR# 00086856Series Snap Tap
$259.76List $297.00
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00086856 indexable threading toolholders. Series Snap Tap.
Specifications
Center to cutting edge0.2000
Coolant entry style code1 - Axial Concentric Entry
Coolant throughYes
Cutting tool applicationThreading; Turning
F in0.2000
Hand of holderRight Hand
Head length in3/4
Insert compatibility09NR
Insert holding methodScrew
Insert inscribed circle in7/32
Maximum depth of cut0.7500
Minimum bore diameter0.4000
Multi use toolYes
Overall length5.5000
Shank height0.6910
Shank length in4-3/4
Shank width diameter0.7070
Thread typeInternal
Toolholder materialSteel
Toolholder styleSN
