Seco

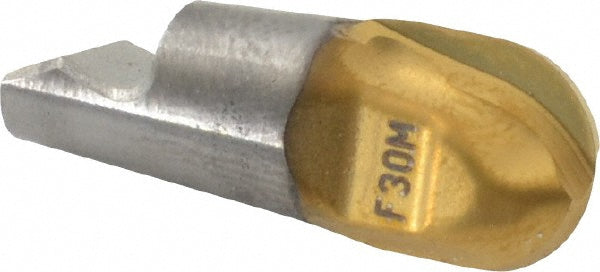

Carbide Insert, Grade F30M, TiAlN - Seco 00086948
MFR# 00086948Series MM10
$127.51
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeF30M
CoatingTiAlN
Description
The Seco 00086948 is a carbide indexable insert, grade F30M, TiAlN coated. Suited for steel, stainless steel, non-ferrous metal, hard material.
Specifications
Chamfer angle0degree
ChipbreakerM04
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.1880
Cutting width0.3750in
Extension from holder in0.4620
Functional length0.4620
Helix angle0
Included angle degree90
Insert handRight Hand
Insert size0.375-B90P
Lead angle90
Length of cut0.3430in
Manufacturers catalog number00086948
Manufacturer gradeF30M
Material gradeP20; P30; M10; M20; H10
Maximum depth of cut0.3430
Milling tip full descriptionMM10-0.375-B90P-M04
Milling tip styleMM10
Milling tip typeProfile
Number of flutes2
Overall length0.4620in
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Hard Material
StandardsANSI
Tool materialCarbide
