Seco

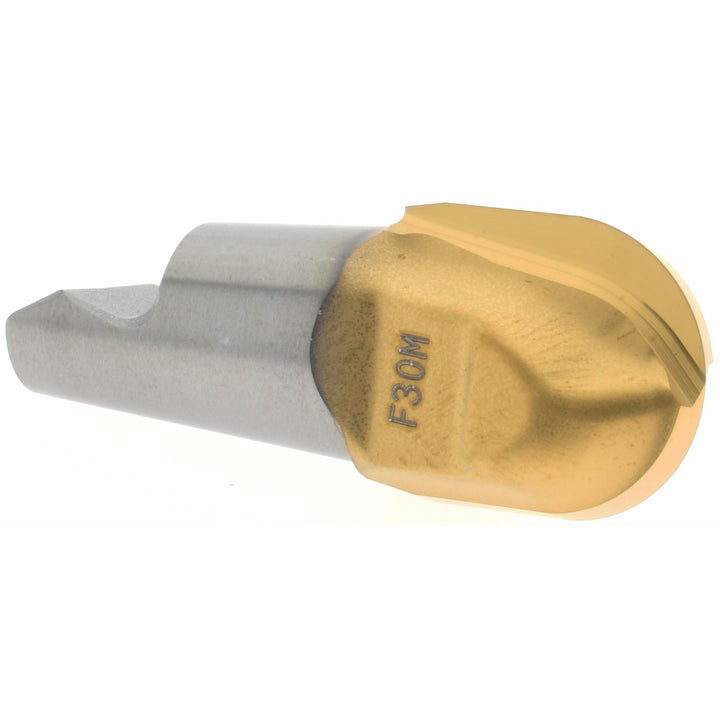

Carbide Insert, Grade F30M, TiAlN - Seco 00086949
MFR# 00086949Series MM12
$159.12
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeF30M
CoatingTiAlN
Description
The Seco 00086949 is a carbide indexable insert, grade F30M, TiAlN coated. Suited for steel, stainless steel, non-ferrous metal, hard material.
Specifications
Chamfer angle0
ChipbreakerM05
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.2500
Cutting width0.5
Extension from holder in0.6270
Functional length0.6270
Helix angle0
Included angle degree90
Insert handRight Hand
Insert size0.500-B90P
Lead angle90
Length of cut0.4800
Manufacturers catalog number00086949
Manufacturer gradeF30M
Material gradeP20; P30; M10; M20; H10
Maximum depth of cut0.4800
Milling tip full descriptionMM12-0.500-B90P-M05
Milling tip styleMM12
Milling tip typeProfile
Number of flutes2
Overall length0.627
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Hard Material
StandardsANSI
Tool materialCarbide
