Seco

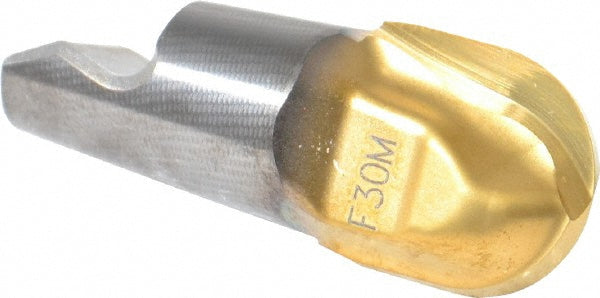

Carbide Insert, Grade F30M, TiAlN - Seco 00086950
MFR# 00086950Series MM16
$246.29
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeF30M
CoatingTiAlN
Description
The Seco 00086950 is a carbide indexable insert, grade F30M, TiAlN coated. Suited for steel, stainless steel, non-ferrous metal, hard material.
Specifications
Chamfer angle0degree
ChipbreakerM07
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.3130
Cutting width0.6250in
Extension from holder in0.7240
Functional length0.7240
Helix angle0
Included angle degree90
Insert handRight Hand
Insert size0.625-B90P
Lead angle90
Length of cut0.5430in
Manufacturers catalog number00086950
Manufacturer gradeF30M
Material gradeP20; P30; M10; M20; H10
Maximum depth of cut0.5430
Milling tip full descriptionMM16-0.625-B90P-M07
Milling tip styleMM16
Milling tip typeProfile
Number of flutes2
Overall length0.7240in
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Hard Material
StandardsANSI
Tool materialCarbide
