Seco

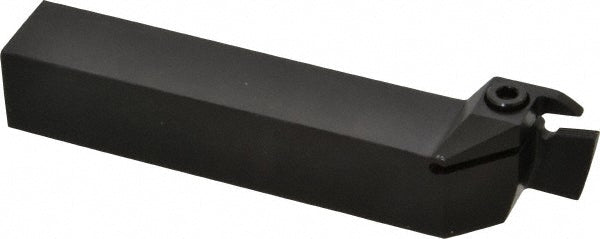

Indexable Turning & Profiling - Seco 00090975
MFR# 00090975Cat# CFIR; L-100-05DSeries Multi-Directional Turning (MDT)
$246.01List $261.36
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00090975 indexable turning & profiling. Suited for universal. Series Multi-Directional Turning (MDT).
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeLC1605
Complete insert compatibilityLC.. 1605..; LCGN; LCMF; LCMR
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationCut-Off; Grooving
Hand of holderRight Hand
Head length1.4200
Insert compatibilityLC..1605..
Insert holding methodClamp
Insert width0.1870
Lead angle90.0
Manufacturers catalog numberCFIR; L-100-05D
Maximum depth of cut0.6100
Multi use toolYes
Overall length in6
Primary workpiece materialUniversal
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder styleCFIR
