Seco

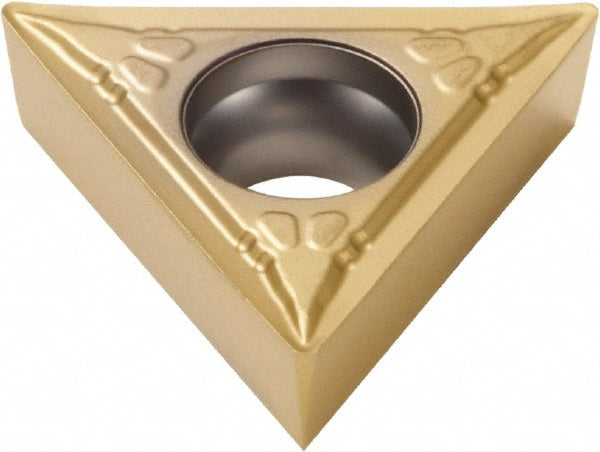

TCMT16T308-F1 Carbide Insert, Grade CP500, TiAlN - Seco 00091357
MFR# 00091357ISO/ANSI# TCMT32.52-F1Series TCMT-F1
$18.18List $23.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 00091357 is a TCMT16T308-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle60degree
Industry standard numberTCMT32.52-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code32.52
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T308-F1
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number00091357
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.5709
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width0.6496in
Wiper edgeNo
