Seco

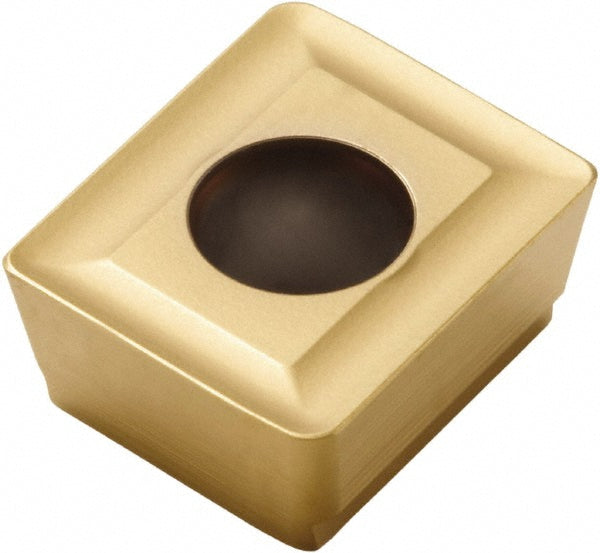

ACET150612TR-M11 Solid Carbide Insert, Grade T25M, TiCN - Seco 00091818
MFR# 00091818ISO/ANSI# ACET150612TR-M11Cat# ACET150612TR-M11Series ACET-15
$34.27List $43.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeParallelogram
GradeT25M
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 00091818 is a ACET150612TR-M11 solid carbide indexable insert, grade T25M, TiCN coated.
Specifications
Ansi codeACET150612TR-M11
Chip breakerM11
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutter series compatibilityR220.69-15H; R217.59-12; R220.59-12; R217.81; R220.81
Cutting edge effective length0.5906
Cutting edge styleT-Land
Hole diameter0.2205
Included angle degree86
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150612
Insert styleACET
Iso codeACET150612TR-M11
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberACET150612TR-M11
Manufacturer gradeT25M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.5827
Multi use toolYes
Number of cutting edges2
RakePositive
Rake angle14
Relief angle7.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width in1/2
