Seco

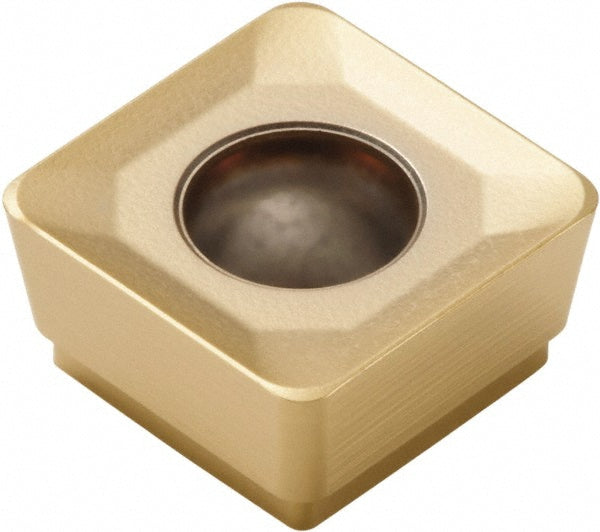

SCET120612T-M11 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00091827
MFR# 00091827ISO/ANSI# SCET120612T-M11Cat# SCET120612T-M11Series SCET-12
$35.04List $44.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00091827 is a SCET120612T-M11 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSCET120612T-M11
Chip breakerM11
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityR217.59-12; R220.59-12
Cutting edge effective length0.5000
Cutting edge styleT-Land
Hole diameter0.2205
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120612
Insert styleSCET
Iso codeSCET120612T-M11
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSCET120612T-M11
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.4528
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle14
Relief angle7
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width in1/2
