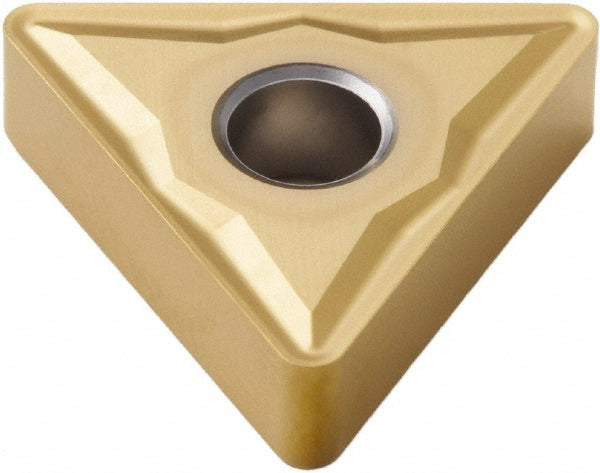

TNMG220412-MR3 Carbide Insert, Grade CP500, TiAlN - Seco 00091855

Seco

TNMG220412-MR3 Carbide Insert, Grade CP500, TiAlN - Seco 00091855

MFR# 00091855ISO/ANSI# TNMG433-MR3Series TNMG-MR3

$22.80List $29.25 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

The Seco 00091855 is a TNMG220412-MR3 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Chip breakerMR3
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle60degree
Industry standard numberTNMG433-MR3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code433
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220412-MR3
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number00091855
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.7520
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width0.8661in
Wiper edgeNo
