Seco

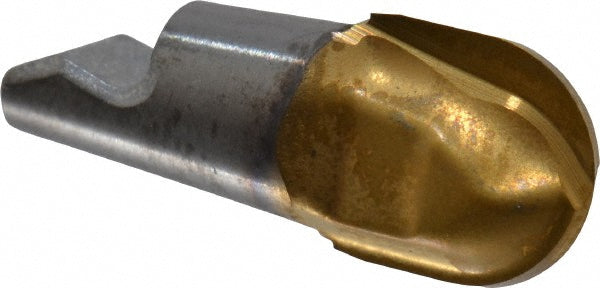

Carbide Insert, Grade F30M, TiAlN - Seco 00093747
MFR# 00093747Series MM06
$95.58
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeF30M
CoatingTiAlN
Description
The Seco 00093747 is a carbide indexable insert, grade F30M, TiAlN coated. Suited for steel, stainless steel, non-ferrous metal, hard material.
Specifications
Chamfer angle0degree
ChipbreakerM02
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.1250
Cutting width0.2500in
Extension from holder in0.2840
Functional length0.2840
Helix angle0
Included angle degree90
Insert handRight Hand
Insert size0.250-B90P
Lead angle90
Length of cut0.2130in
Manufacturers catalog number00093747
Manufacturer gradeF30M
Material gradeP20; P30; M10; M20; H10
Maximum depth of cut0.2130
Milling tip full descriptionMM06-0.250-B90P-M02
Milling tip styleMM06
Milling tip typeProfile
Number of flutes2
Overall length0.2840in
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Hard Material
StandardsANSI
Tool materialCarbide
