Seco

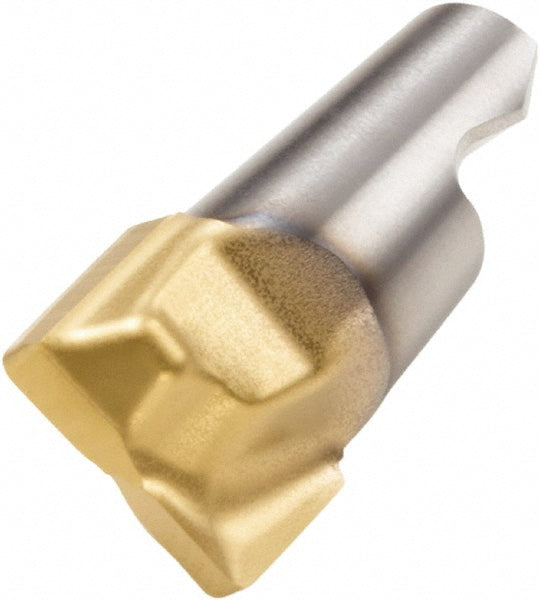

Carbide Insert, Grade F30M, TiAlN - Seco 00093777
MFR# 00093777Series MM16
$200.53
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeF30M
CoatingTiAlN
Description
The Seco 00093777 is a carbide indexable insert, grade F30M, TiAlN coated. Suited for steel, non-ferrous metal, hard material.
Specifications
Chamfer angle0degree
ChipbreakerE06
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0310
Cutting width0.7500in
Extension from holder in0.6060
Functional length0.6060
Helix angle8
Included angle degree90
Insert handRight Hand
Insert size0.750-R2A8
Lead angle90
Length of cut in1/2in
Manufacturers catalog number00093777
Manufacturer gradeF30M
Material gradeP20; P30; H10
Maximum depth of cut (mm)12.7
Milling tip full descriptionMM16-0.750-R2A8-E06
Milling tip styleMM16
Milling tip typeSlotting
Number of flutes2
Overall length0.6060in
Primary workpiece materialSteel; Non-Ferrous Metal; Hard Material
StandardsANSI
Tool materialCarbide
