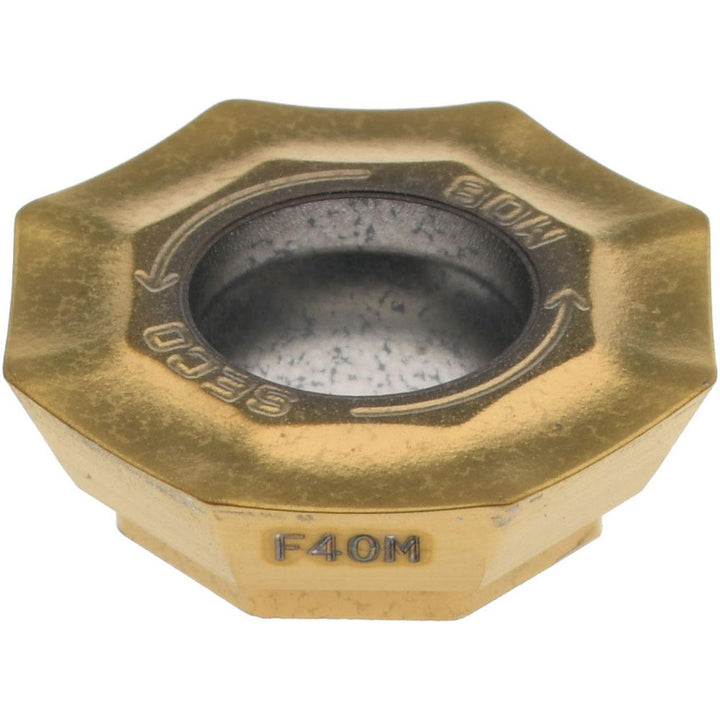

OFEX05T305TN-M08 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00094729
MFR# 00094729ISO/ANSI# OFEX05T305TN-M08Cat# OFEX05T305TN-M08Series OFEX-05
$27.29List $35.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeOctagon
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00094729 is a OFEX05T305TN-M08 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeOFEX05T305TN-M08
Chip breakerM08
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityR217.43-05; R220.43-05
Cutting edge effective length0.2075
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree135
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code05T305
Insert styleOFEX
Iso codeOFEX05T305TN-M08
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberOFEX05T305TN-M08
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.1929
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNeutral
Rake angle0
Relief angle26.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeOctagon
Single or double sided insertSingle
StandardsISO
Thickness0.1484
Thickness range0.1250 to 0.1500
Width in1/2
