Seco

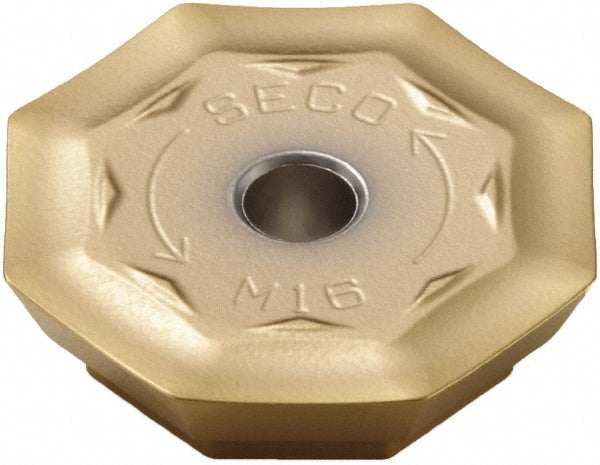

OFER070405TN-M16 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00094730
MFR# 00094730ISO/ANSI# OFER070405TN-M16Cat# OFER070405TN-M16Series OFER-07
$34.10List $43.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00094730 is a OFER070405TN-M16 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeOFER070405TN-M16
Chip breakerM16
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityR220.43-07
Cutting edge effective length0.2921
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.7063
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeOctagon
Insert size07
Insert size code070405
Insert styleOFER
Iso codeOFER070405TN-M16
Length0.7063
Length range0.7000 to 0.9000
Manufacturers catalog numberOFER070405TN-M16
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.2795
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNeutral
Rake angle0
Relief angle26
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeOctagon
Single or double sided insertSingle
StandardsISO
Thickness0.1795
Thickness range0.1750 to 0.1850
Width0.7063
