Seco

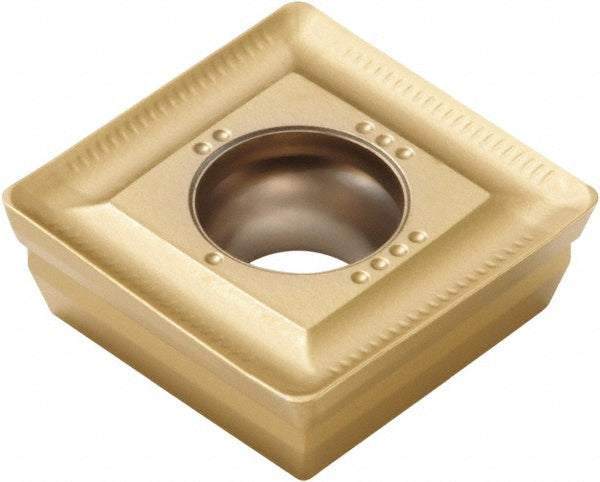

SONX150508TR-ME10 Solid Carbide Insert, Grade F40M, TiAlN - Seco 00094732
MFR# 00094732ISO/ANSI# SONX150508TR-ME10Cat# SONX150508TR-ME10Series SONX-15
$33.09List $42.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 00094732 is a SONX150508TR-ME10 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSONX150508TR-ME10
Chip breakerME10
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR220.99-15
Cutting edge effective length0.6220
Cutting edge styleT-Land
Hole diameter0.2205
Included angle degree90
Inscribed circle0.6220
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size15
Insert size code150508
Insert styleSONX
Iso codeSONX150508TR-ME10
Length0.6220
Length range0.6000 to 0.6500
Manufacturers catalog numberSONX150508TR-ME10
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.5512
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle19
Relief angle15
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.6220
