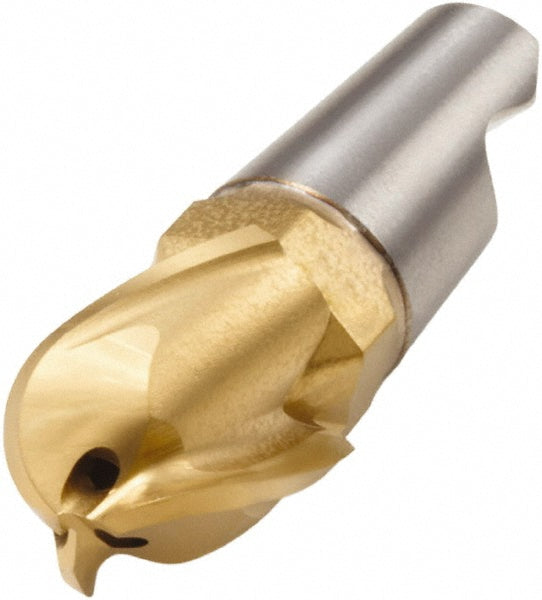

Carbide Insert, Grade F40M, TiAlN - Seco 00096013

Seco

Carbide Insert, Grade F40M, TiAlN - Seco 00096013

MFR# 00096013Series MM12

$153.67
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
GradeF40M
CoatingTiAlN

Description

The Seco 00096013 is a carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerM04
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Corner radius0.2360
Cutting diameter0.4720
Cutting width0.4720in
Extension from holder in0.7830
Functional length0.7830
Helix angle30
Included angle degree90
Insert handRight Hand
Insert size0.472-B90A30
Lead angle90
Length of cut0.6020in
Manufacturers catalog number00096013
Manufacturer gradeF40M
Material gradeP10; P20; P30; P40; P50; N10; N20; M10; M20; M30; M40; S10; S20
Maximum depth of cut0.6020
Milling tip full descriptionMM12-0.472-B90A30-M04
Milling tip styleMM12
Milling tip typeProfile
Number of flutes3
Overall length0.7830in
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
