Seco

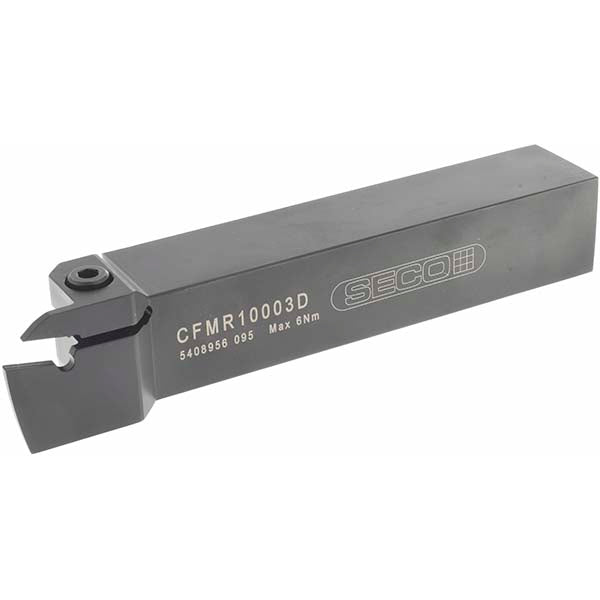

Indexable Turning & Profiling - Seco 00096174
MFR# 00096174Cat# CFMR; L-100-03DSeries Multi-Directional Turning (MDT)
$290.72List $300.24
Save 3%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00096174 indexable turning & profiling. Suited for universal. Series Multi-Directional Turning (MDT).
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeLC1603
Complete insert compatibilityLC.. 1603..; LCGN; LCMF; LCMR
Coolant throughYes
Cutting directionRight Hand
Cutting tool applicationCut-Off; Grooving
Hand of holderRight Hand
Head length1.4400
Insert compatibilityLC..1603..
Insert holding methodClamp
Insert width0.1250
Lead angle90.0
Manufacturers catalog numberCFMR; L-100-03D
Maximum depth of cut0.5900
Multi use toolYes
Overall length in6
Primary workpiece materialUniversal
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder styleCFMR
