Seco

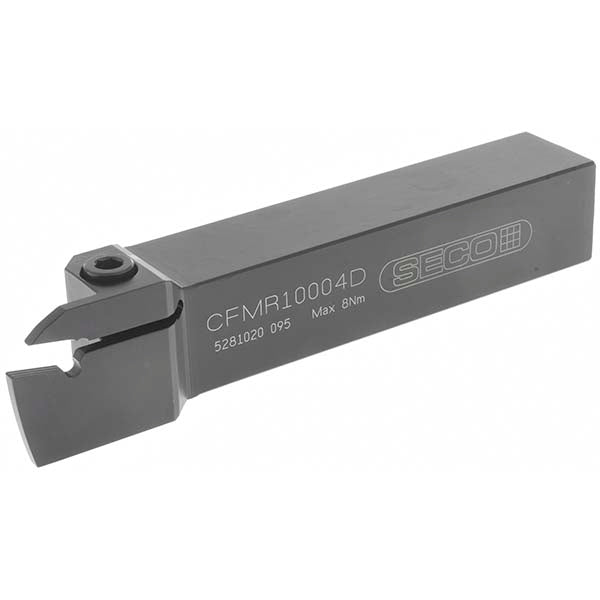

Indexable Turning & Profiling - Seco 00096176
MFR# 00096176Cat# CFMR; L-100-04DSeries Multi-Directional Turning (MDT)
$273.45List $290.51
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00096176 indexable turning & profiling. Suited for universal. Series Multi-Directional Turning (MDT).
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeLC1604
Complete insert compatibilityLC.. 1604..; LCGN; LCMF; LCMR
Coolant throughYes
Cutting directionRight Hand
Cutting tool applicationCut-Off; Grooving
Hand of holderRight Hand
Head length1.5400
Insert compatibilityLC..1604..
Insert holding methodClamp
Insert width0.1570
Lead angle90.0
Manufacturers catalog numberCFMR; L-100-04D
Maximum depth of cut0.7870
Multi use toolYes
Overall length in6
Primary workpiece materialUniversal
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder styleCFMR
