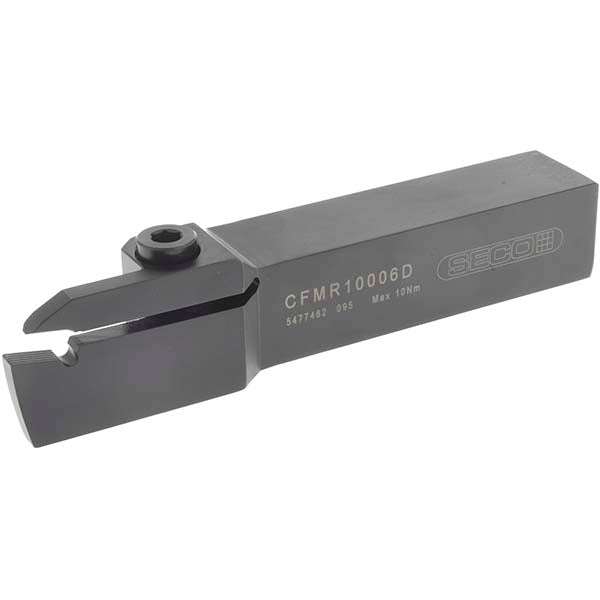

Indexable Turning & Profiling - Seco 00096180
MFR# 00096180Cat# CFMR; L-100-06DSeries Multi-Directional Turning (MDT)
$324.99
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 00096180 indexable turning & profiling. Suited for universal. Series Multi-Directional Turning (MDT).
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeLC1606
Complete insert compatibilityLC.. 1606..; LCGN; LCMF; LCMR
Coolant throughYes
Cutting directionRight Hand
Cutting tool applicationCut-Off; Grooving
Hand of holderRight Hand
Head length2.0500
Insert compatibilityLC..1606..
Insert holding methodClamp
Insert width0.2500
Lead angle90.0
Manufacturers catalog numberCFMR; L-100-06D
Maximum depth of cut1.1810
Multi use toolYes
Overall length in6
Primary workpiece materialUniversal
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder styleCFMR
